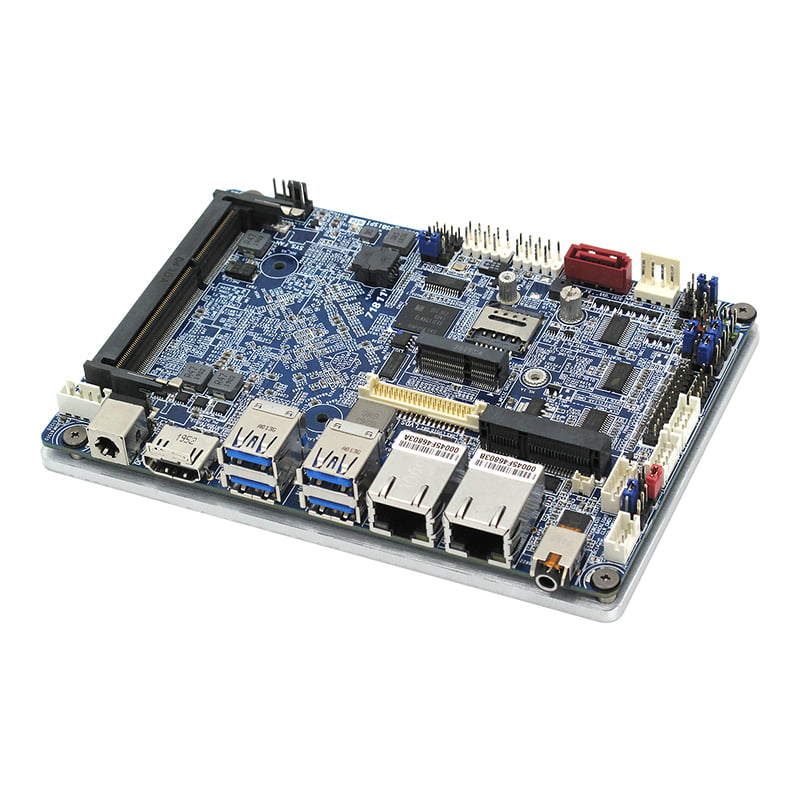

ECM-3455J - 3.5" SBC with Intel Celeron J3455J Quad Core Processor Onboard
ECM-3455J is equipped with the 14nm Intel® Celeron® J3455 Quad Core 10 watts TDP low power SoC processor with integrated Intel® HD Graphics 500.
The onboard 32GB eMMC is convenient and cost effective for most industrial applications. The J3455 quad-core CPU offers exceptional value-performance for applications in industrial, medical, healthcare, factory, and retail markets. For applications require larger capacity, the option of 64GB eMMC onboard is available for qualifying OEMs on a build to order basis.
ECM-3455J is unique fanless design using the solid aluminum block heat-spreader to help transfer and release the heat with the reliability of not active fan. The low profile design of the ECM-3455J suits space saving applications that require fanless, and quiet operations.
* All product specifications and product images are subject to change without notice.
Please visit www.bcmcom.com for more information.
- Intel® Celeron J3455 Quad Core SoC Processor 1.5 GHz up to 2.3GHz max
- 1 x SODIMM DDR3L 1600MHz up to 8GB
- 32GB eMMC Onboard
- Supports Dual Display: HDMI, LVDS
- Supports Dual LAN
- 1 x M.2, 1 x mini-PCIe with mSATA support & uSIM
- TPM 2.0 Onboard
- HDMI, 18/24-bit LVDS
- 4 x USB 3.0, 4 x USB 2.0
- 2 x COM
- I²C, SMBus, GPIO
- 2 x Gigabit LAN
- Fanless Operation with Heatspreader
- 9V-36V Wide Range DC-In
