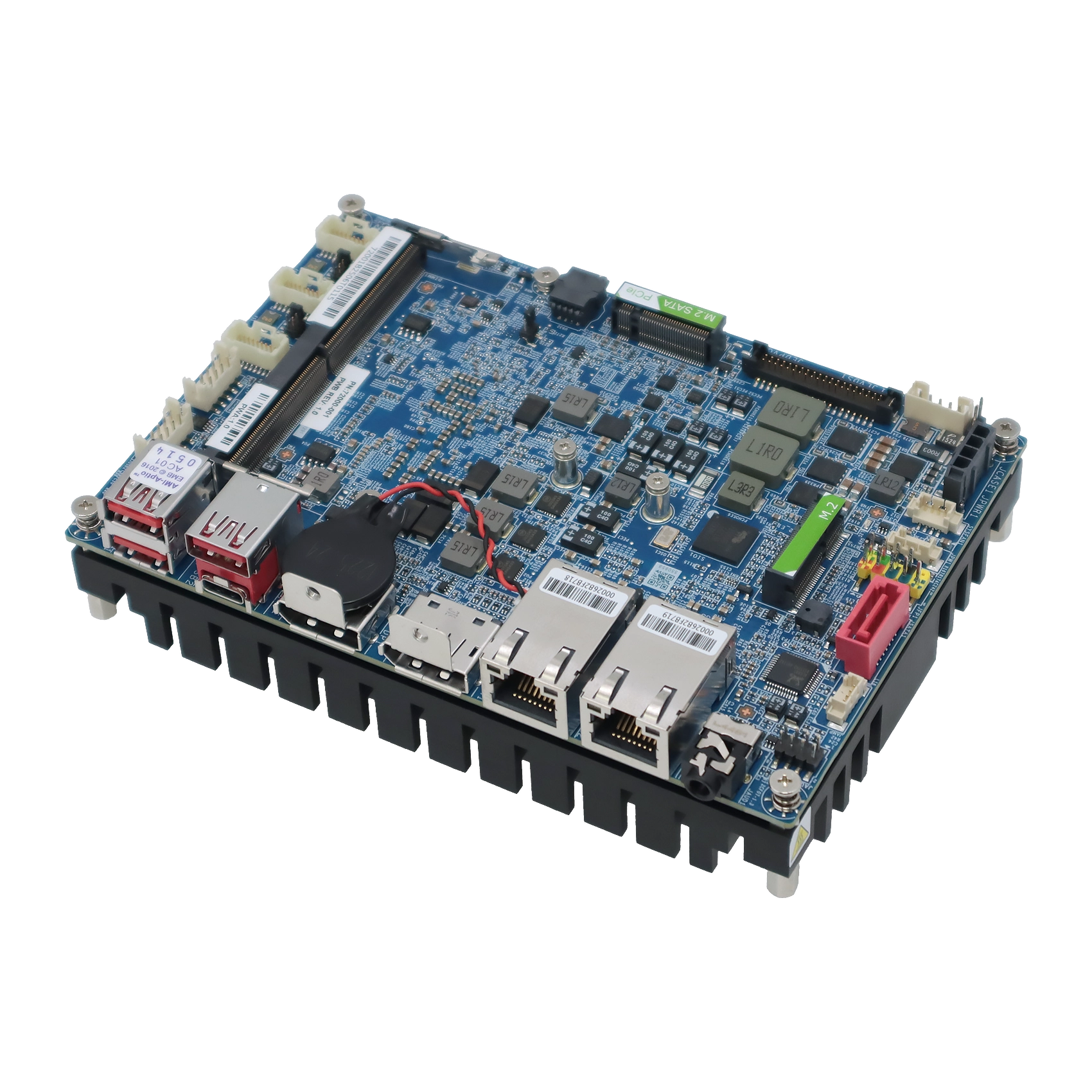

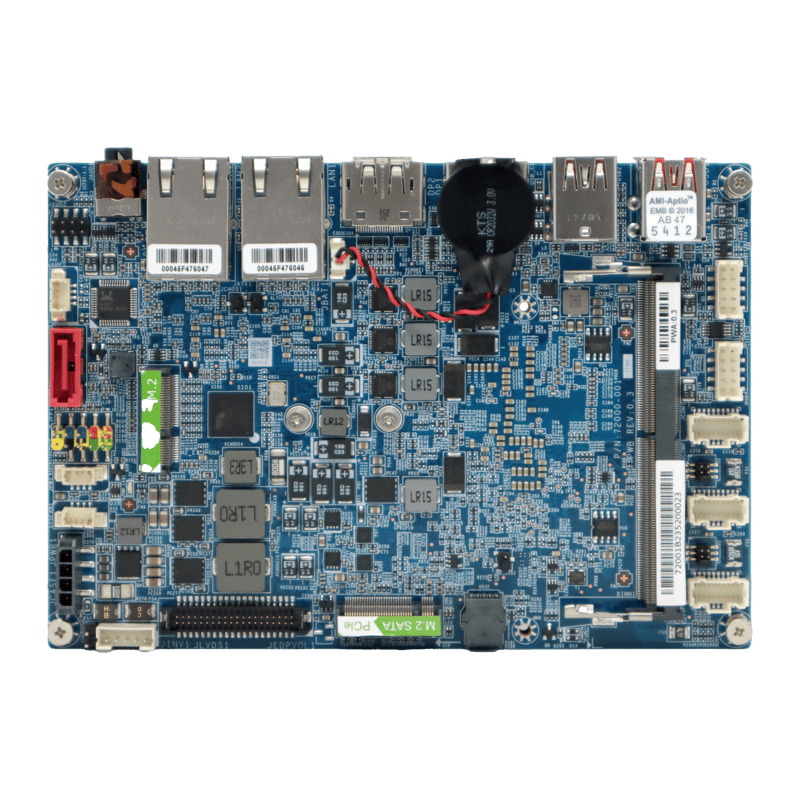

ECM-ADLN-N97 3.5” SBC, Intel Processor N97 Quad-core onboard. Fanless
$278.00
Tags:
ECM-ADLN-N97, a state-of-the-art solution that has earned recognition as part of the Intel® Edge Software Recommended Hardware. This accolade highlights the board’s superior capabilities and its optimization for edge AI computing applications.
* All product specifications and product images are subject to change without notice.
Please visit www.bcmcom.com for more information.
Product Details
- Intel® Processor N97 onboard, up to 3.60 GHz, up to 12W TDP
- Intel® Alder Lake-N Platform
- 1 x SODIMM socket supports DDR5 4800 MT/s up to 16GB
- 32GB eMMC Onboard
- Supports 3 Independent Displays: 2 x DisplayPort 1.4b 4K@60Hz, LVDS/eDP
- USB Typc-C OTG
- 3 x USB 3.2 Gen2 Type-A (Red), 4 x USB 2.0, 2 x COM, 1 x SATAIII
- 2 x Intel® Ethernet Controller I226-V (2.5GbE)
- M.2 B-Key 2242/3042 with Nano SIM Card Socket
- 12V-24V Wide Range DC-In

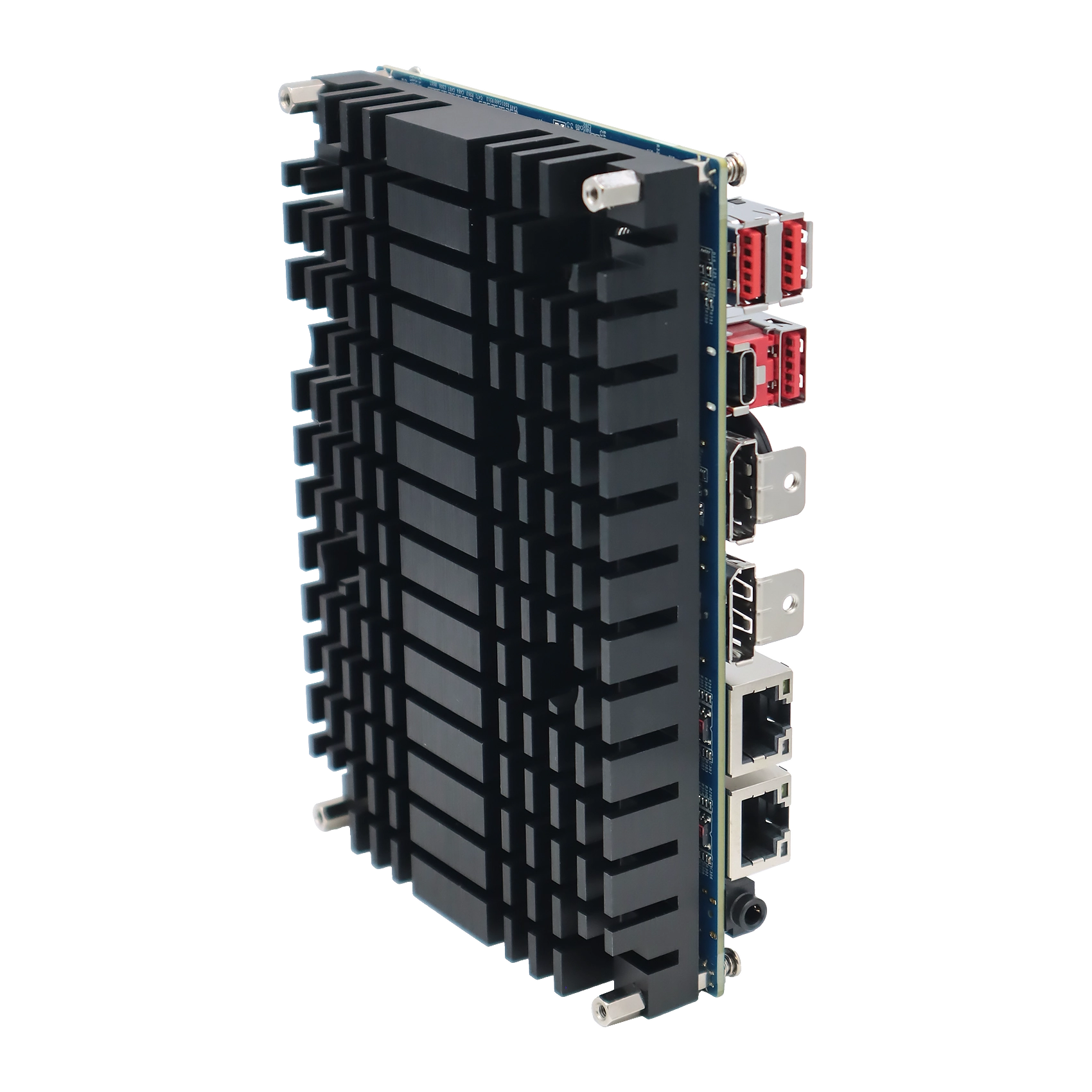

- Fanless Operation - 12W CPU (Heatsink)
- Optional: Heat Spreader Cooling Design
