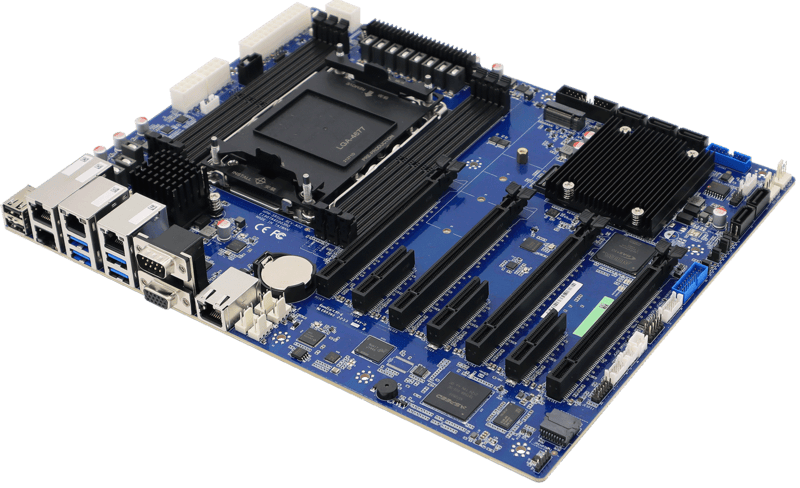

HPM-ERSUAA - Server Class ATX Motherboard, supports 4th Gen. Intel® Xeon® Scalable Processor, 4 LAN
$1,176.00
HPM-ERSUAA is a single socket HPC high-performance computing motherboard with extended lifecycle in ATX form factor. This SKU comes with 4 LAN ports at external I/O.
Please note - shipping may take 2-3 weeks if the product is out of stock when ordered. We will contact you after the order is placed with updated timelines.
Please visit detail product information on BCM website at https://www.bcmcom.com/bcm_product_HPM-ERSUA.html.
Product Details
- Intel® LGA4677 socket supports 5th Gen Intel® Xeon Scalable Processor up to 270W TDP
- Intel® C741 Chipset
- 6 x DDR5 slots support 5600MHz RDIMM up to 1.5TB
- 4 x Gen5 PCIe x16 slots and 3 x Gen5 PCIe x4 slots
- TPM 2.0 onboard
- IPMI 2.0 supported by AST 2600 BMC controller onboard
- 1 x Intel® I210-AT 1GbE and 1 x Intel® I226-LM 2.5GbE Ethernet Controllers, 2 x RJ45 LAN ports
- 1 x Intel® X550-AT2 10GbE Ethernet Controller suppports 2 x RJ45 LAN ports, 10GbE each port
- 5 x SATA III (SATA 1~4 support RAID 0, 1, 5, 10)
- 4 x USB 3.2 Gen 1 port & 2 x USB 2.0 port at Edge I/O
- 4 x Internal USB 3.2 Gen 1 Ports
- 1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 Form Factor
- 1 x VGA, 1 x COM Port
- Dimension: 12" x 9.6" (304.8mm x 243.84mm)
- 2.54mm PCB Thickness
