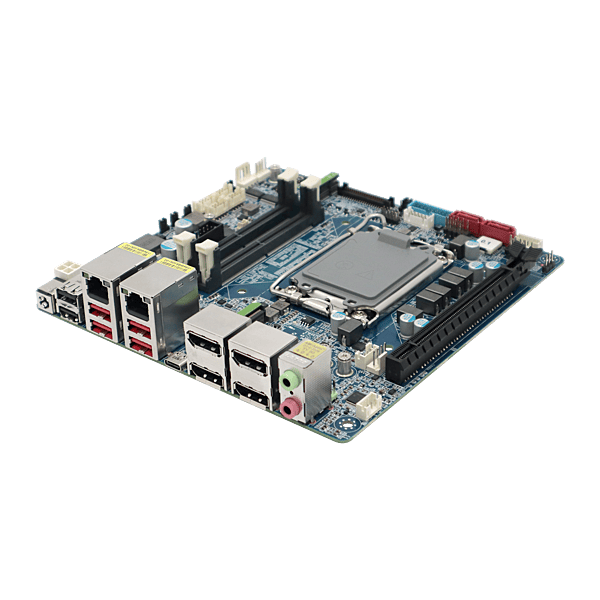

MX-RPLPS Mini ITX, CPU + PCH Multichip Package, LGA 1700 socket supports Intel Core Processor
$349.33
Tags:
MX-RPLPS is a compact Mini-ITX motherboard designed for high-performance solutions. It features dual LAN with 2 x Intel® I226-LM 2.5GbE Ethernet Controllers for reliable networking. The board includes a USB Type C Thunderbolt® 4 port, 4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, and 4 x USB 2.0 ports for versatile peripheral connections. With a Gen4 PCIe x4 Slot, M.2 for Wi-Fi/BT/storage slots, and support for 12-24V Wide Range DC-in, it offers versatile connectivity and expandability. Additionally, the onboard TPM 2.0 enhances security for edge applications.
All product specifications and product images are subject to change without notice. Please visit www.bcmcom.com for more information.
Product Details
- LGA 1700 socket supports Intel® Core™ 7/5/3 Processor, formerly the Raptor Lake PS (RPL-PS) Platform
- 2 x DDR5 5200MHz SO-DIMM sockets support up to 96GB
- Intel® Graphics with up to 96 graphics EUs (CPU Dependent)
- 4 x DP++, supports 4 Independent Displays
- Onboard LVDS, optional eDP
- Dual LAN, 2 x Intel® I226-LM 2.5GbE Ethernet Controllers
- 1 x USB Type C Thunderbolt® 4
- 4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
- Gen4 PCIe x4 Slot (x16 Physical Slot)
- 1 x M.2 M-Key 2242/2280 NVMe
- 1 x M.2 B-Key 3042/3052
- 1 x M.2 E-Key 2230 (PCIe x1 Channel & USB Signal)
- 4 x COM Ports
- 12-24V Wide Range DC-in
- TPM 2.0
