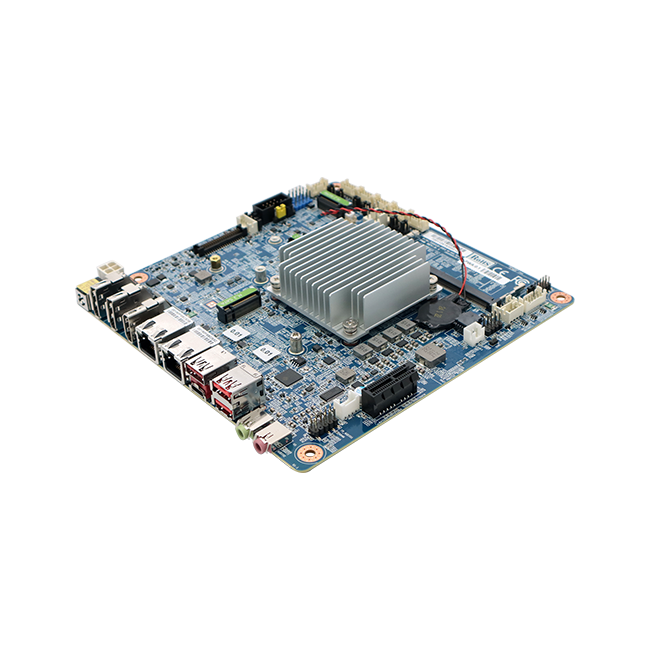

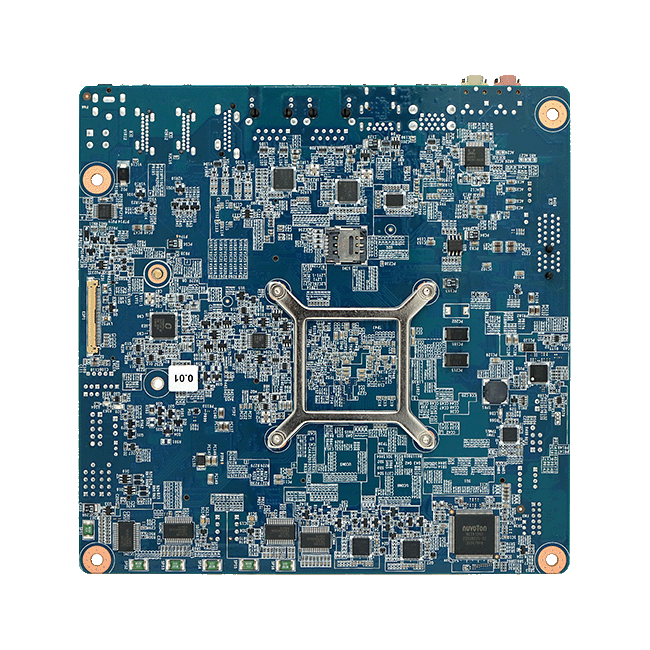

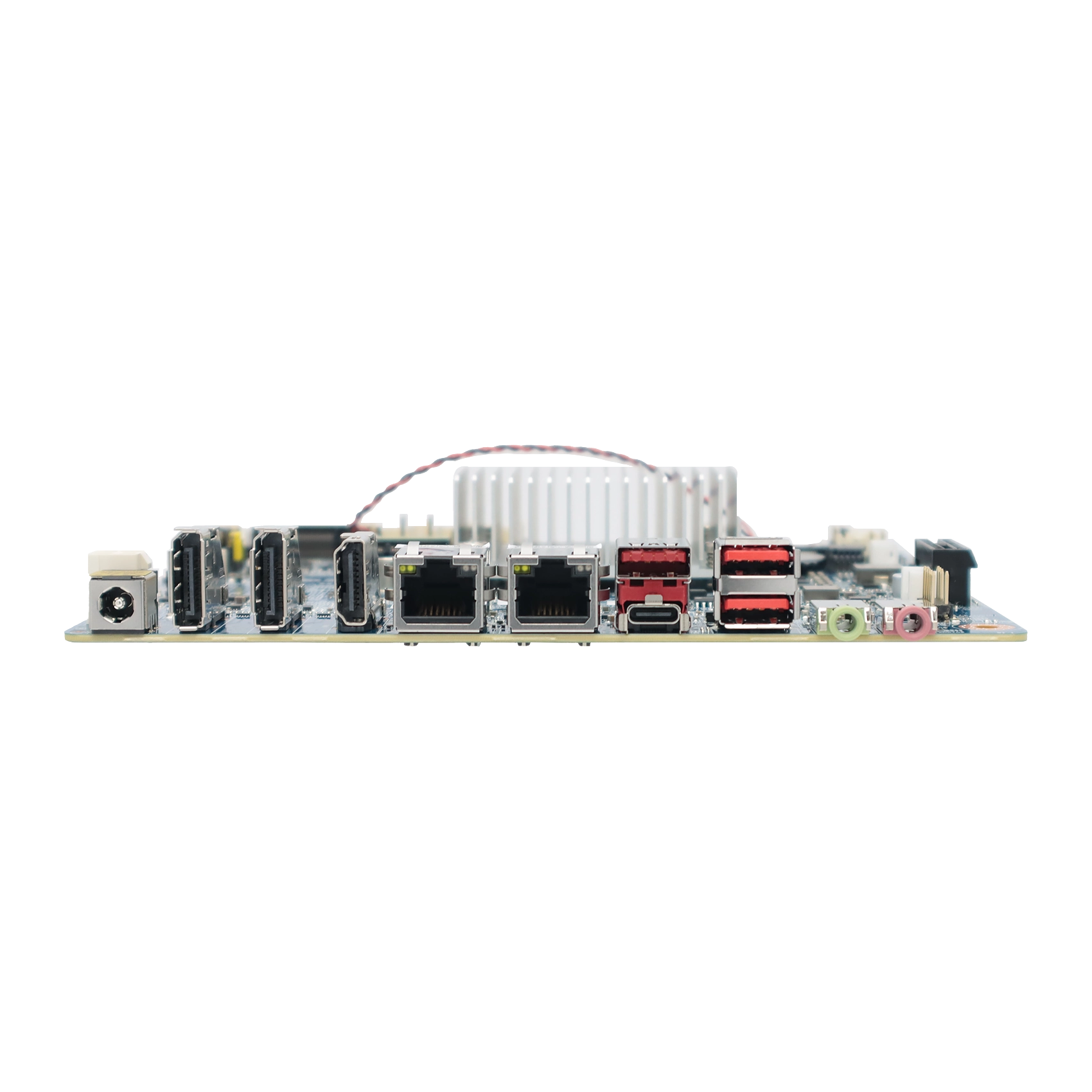

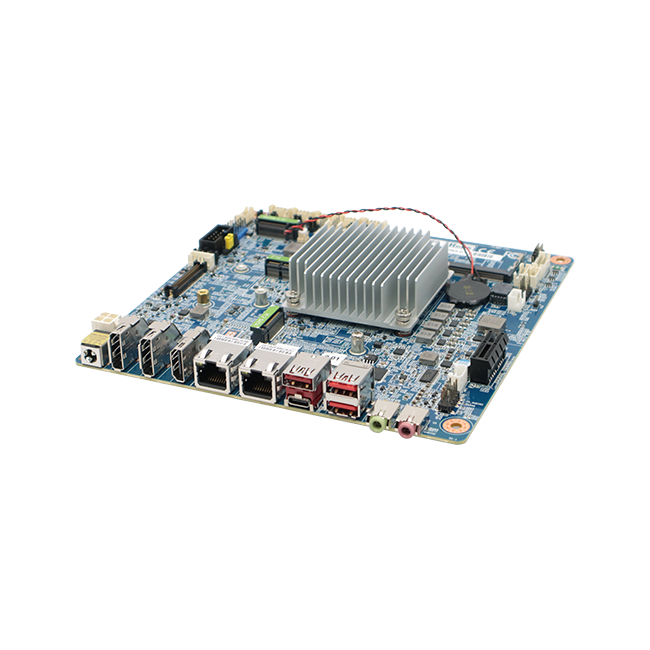

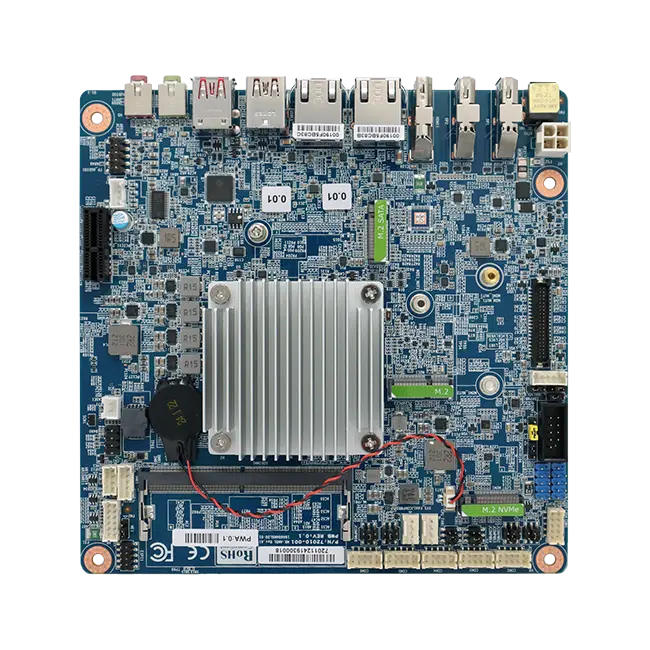

MX97N - Thin Mini ITX with Intel® Processor N97 SoC
Non-returnable
$265.00
Tags:
Thin Mini ITX with Intel® Processor N97 SoC
* All product specifications and product images are subject to change without notice.
Please visit www.bcmcom.com for more information.
Product Details
Intel® Processor N97, low power Quad-core Soc (12W TDP), Intel® Alder Lake N platform
Build-to-Order on Intel® Atom® Processors Amston Lake (up to 15W TDP) platform
Low-profile design, Value-Packed Thin Mini ITX Motherboard
Integrated Intel® UHD Graphic, supports 3 Independent Displays: 2 x DP 1.4a 4K, 1 x HDMI 1.4b, LVDS/eDP
Dual 2.5GbE LAN: 2 x Intel® Ethernet Controller I226-V
1 x USB Type C
3 x USB 3.2 Gen2 Type A, 4 x USB 2.0
6 x COM/Serial Ports
Expansion Slots: M.2 E-Key, M-Key, B-Key, PCIe x1
12V-24V Wide Range DC-In
TPM 2.0
Passive Cooling with Optional Cooling Fan
